AUTOMATIC SWITCH-OVER
AUTOMATIC VOLTAGE REGULATION (AVR)
QUICK TRANSFER TIME
GENERATOR COMPATIBLE
Overview

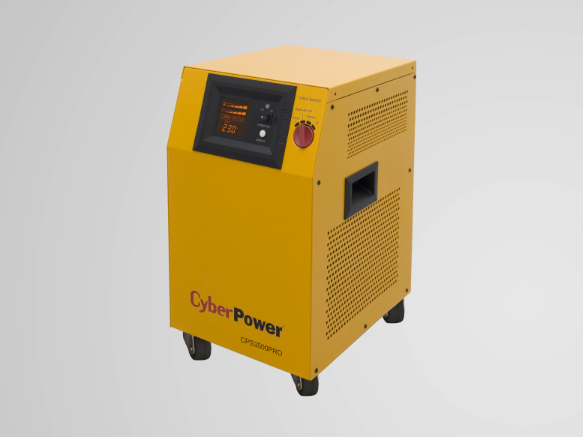

CyberPower CPS3500PRO guarantees high-quality power support for security/emergency system, pump, heater/boiler, generator, lighting, and fans. The emergency power system adopts line-interactive topology and surge protected outlets to offer stabilized Pure Sine Wave output. When connected to additional external batteries and generators, the product provides backup power output during power failures by automatically switching from utility to external batteries to ensure seamless operation of devices.

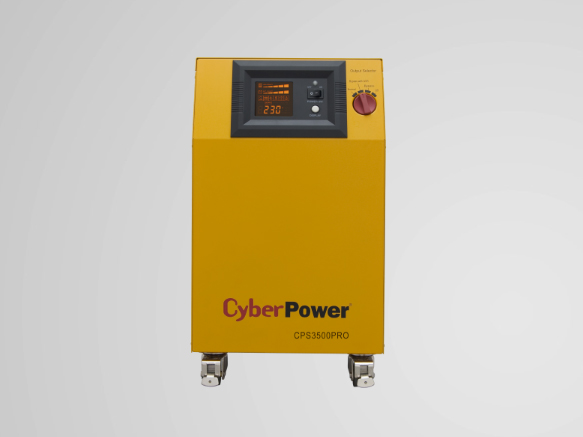

The product features multifunction LCD readout to display precise information of power and battery conditions for convenient system management. The product comes with wheels and carry handle for easy relocation. It is also compatible with PowerPanel® Power Management Software and SNMP/ HTTP card for real-time monitoring and configuration.
FEATURES
- - Generator Compatible
- - Automatic Switch-over
- - Pure Sine Wave Output
- - Automatic Voltage Regulation (AVR)
- - Manual Switch
- - Auto-charge
- - Quick Transfer Time
- - LCD Status Display
- - LED Status Indicators
- - PowerPanel® Management Software
- - SNMP/ HTTP Remote Monitoring Capability
- - Tower Form Factor
- - Wheels and Carry Handle Available
Specification
GENERAL
| Phase | Single Phase |
| Capacity (VA) | 3500 |
| Capacity (Watts) | 2450 |
INPUT
| Generator Compatibility | Yes |
| Nominal Input Voltage ( Vac ) |
220 230 240 |
| Input Voltage Range ( Vac ) | 140 ~ 300 Vac |
| Input Frequency ( Hz ) |
50 ± 5 60 ± 5 |
| Input Frequency Detection | Auto-sensing |

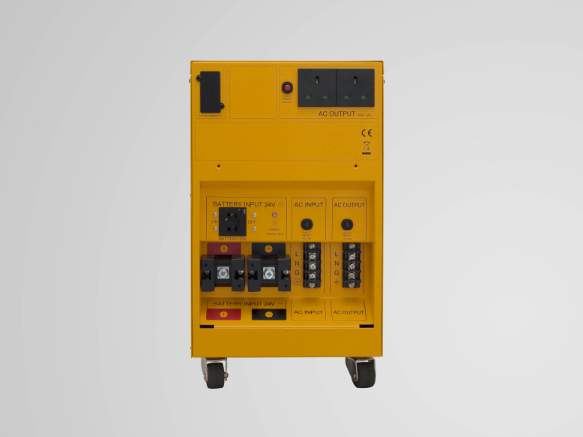

| Input Connector Type | Hardwire Terminal Block |
| DC Input Voltage ( Vdc ) | 24 |
OUTPUT
| Output Waveform | Pure Sine Wave |
| Output Voltage(s) ( Vac ) |
220 ± 5% 230 ± 5% 240 ± 5% |
| Output Voltage Setting | Configurable |
| Output Frequency ( Hz ) |
50 ± 1% 60 ± 1% |
| Automatic Voltage Regulation (AVR) | Single Boost, Single Buck |
| Overload Protection (On Utility) | Circuit Breaker |
| Overload Protection (On Battery) | Internal Current Limiting |
| Manual Switch | Normal, Bypass with AVR, Bypass, Off |
| Outlet(s) - Total | 3 |
| Outlet Type |
Hardwire Terminal Block x 1 UK x 2 |
| Auto-charge | Yes |
| Typical Transfer Time ( ms ) | 10 |
SURGE PROTECTION & FILTERING
| Lightning / Surge Protection | Yes |
MANAGEMENT & COMMUNICATIONS
| LCD Panel | Yes |
| LCD Information Display | Operation Type , Power Status , Battery Status , Load Status , Other Information , Event & Log |
| LCD Setting & Control | Alarm Setting , Input & Output , Battery Setting |
| LED Indicators | Power On , Wiring Fault |
| Audible Alarms | Battery Mode , Low Battery , Overload , Overcharge , Overheat |
| Power Management Software | PowerPanel® Business (with optional RMCARD) |
| SNMP / HTTP Remote Monitoring | Yes - with optional RMCARD205 |
PHYSICAL
| Form Factor | Tower |
| Enclosure Construction | Metal |
| Color | Yellow |
| Wheels | Yes |
PHYSICAL SIZE
| Dimensions (WxHxD) (mm.) | 260 x 440 x 330 |
| Weight (kg.) | 36.53 |
SHIPPING DIMENSIONS
| Dimensions (WxHxD) (mm.) | 370 x 555 x 445 |
| Weight (kg.) | 38.75 |
ENVIRONMENTAL
| Operating Temperature (°C) | 0 ~ 40 |
| Operating Relative Humidity (Non-condensing) ( % ) | 0 ~ 95 |
| Operating Elevation ( feet/meters ) | 0-10,000 feet (0-3,000 meters) |
| Storage Temperature (°C) | -15 ~ 45 |
| Storage Relative Humidity (Non-condensing) ( % ) | 0 ~ 95 |
| Storage Elevation ( feet/meters ) | 0-50,000 feet (0-15,000 meters) |
CERTIFICATIONS
| Certifications | CE , EAC , SONCAP |
| RoHS | Yes |
EXTERNAL BATTERY (OPTIONAL)
| Battery Type | Sealed Lead-acid |
| Battery Voltage ( Vdc ) | 24 |
WARRANTY
| Product Warranty Period (Year) | 2 |
